Description

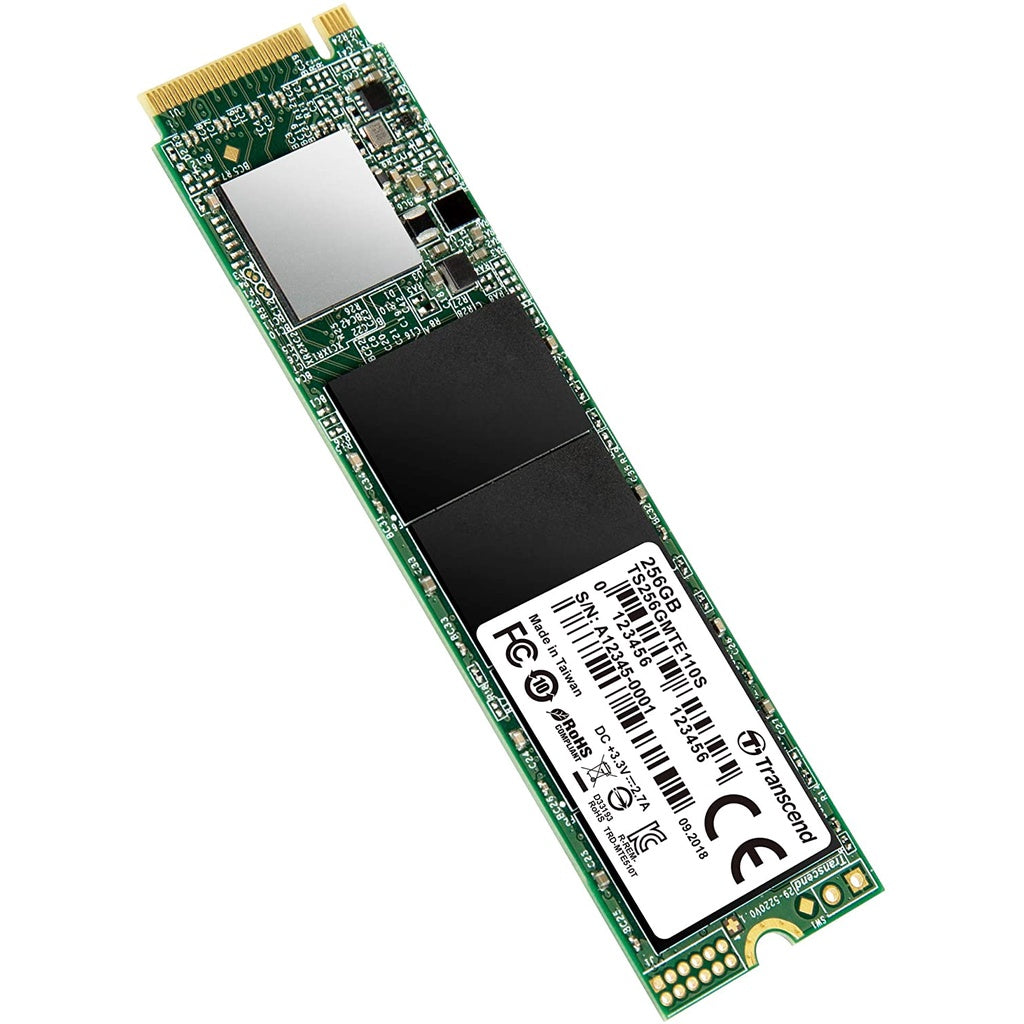

PCIe SSD 110S
Transcend's PCIe SSD 110S utilizes the PCI Express® Gen3 x4 interface supported by the latest NVMe™ standard, to unleash next-generation performance. The PCIe SSD 110S aims at high-end applications, such as digital audio/video production, gaming, and enterprise use, which require constant processing heavy workloads with no system lags or slowdowns of any kind. Powered by 3D NAND flash memory, the PCIe SSD 110S gives you not only fast transfer speeds but unmatched reliability. Compelling performance for high-end applications Transcend's PCIe SSD 110S follows NVMe 1.3 and utilizes the PCIe™ Gen3 x4 interface, meaning four lanes are used for transmitting and receiving data simultaneously, resulting in compelling performance of up to 1,700MB/s read and 1,400MB/s write.
Note: Performance is based on CrystalDiskMark v5.0.2. Understanding the PCIe interface PCIe (or PCI Express®) is a much faster interface than SATA (or Serial ATA) for connecting a host computer to solid-state storage devices over one or more lanes consisting of one transmit and one receive serial interface in each lane, meaning it can better fulfill new performance requirements.
3D expansion to break through limits Unlike the existing planar NAND chips, 3D NAND flash is a type of flash memory in which the memory cells are stacked vertically in multiple layers. 3D NAND is developed to break through density limitations of the 2D planar NAND, and thus can deliver a greater level of performance and endurance. Better endurance, higher reliability Transcend's PCIe SSD 110S is engineered with LDPC (Low-Density Parity Check) coding, a powerful ECC algorithm, to keep data secure. Manufactured with high-quality NAND flash chips, and engineered dynamic thermal throttling mechanism, the PCIe SSD 110S guarantees superior endurance and stability for high-end applications. Transcend SSD Scope software To keep your Transcend SSD running fast and error-free, Transcend's SSD Scope software application is available for download free of charge. Monitor your SSD's health status with S.M.A.R.T. technology, enable the TRIM command for optimum write speeds, keep your SSD's firmware up-to-date, and migrate data from your original drive to a new SSD with just a few clicks.
Dimensions 80 mm x 22 mm x 3.58 mm (3.15" x 0.87" x 0.14") Weight 8 g (0.28 oz) Interface Bus Interface * NVMe PCIe Gen3 x4 Storage Flash Type * 3D NAND flash Capacity * 128 GB/ * 256 GB/ * 512 GB/ * 1 TB Operating Environment Operating Temperature 0°C (32°F) ~ 70°C (158°F) Operating Voltage * 3.3V±5% Performance Sequential Read/Write (CrystalDiskMark) * 1 TB 1,700/1,400 MB/s * 512 GB 1,700/900 MB/s * 256 GB 1,600/800 MB/s * 128 GB 1,500/400 MB/s 4K Random Read/Write (IOmeter) * 1 TB 160,000/140,000 IOPS * 512 GB 160,000/140,000 IOPS * 256 GB 110,000/95,000 IOPS * 128 GB 90,000/90,000 IOPS Terabytes Written (TBW) * 1 TB 400 TBW * 512 GB 200 TBW * 256 GB 100 TBW * 128 GB 50 TBW Mean Time
