Description
-
10G Lightning-Fast Connections: 8× 10 Gbps SFP+ Ports enable high-bandwidth connectivity and non-blocking 160 Gbps switching capacity.
-
Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)*, Centralized Cloud Management, and Intelligent Monitoring.
-
Centralized Management: Easy and convenient management with cloud access and Omada app.
-
Static Routing: Route internal traffic for the efficient use of network resources.
-
Robust Security Strategies: Keep your data safe with systems including IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, and Radius Authentication.
-
Voice and Video Application Optimization: L2/L3/L4 QoS and IGMP snooping.
-
Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities
• Fan Quantity: Fanless
• Power Supply: 100-240 V AC~50/60 Hz
• Mounting: Rack Mountable
• Max Power Consumption: 15.46 W (220 V / 50 Hz)
• Max Heat Dissipation: 52.75 BTU/hr (220 V / 50 Hz)
Interface
• 8× 10GE SFP+ Slots
• 1× RJ45 Console Port
• 1× Micro-USB Console Port
Performance
• Switching Capacity: 160 Gbps
• Packet Forwarding Rate: 119.04 Mpps
• MAC Address Table: 32 K
• Packet Buffer Memory: 16 Mbit
• Jumbo Frame: 9 KB
Software Features
• Quality of Service
• L2 and L2+ Features
• L2 Multicast
• VLAN
• Access Control List
• Security
• IPv6
• L3 Features
• Advanced Features
• MIBs
Management
• Omada App
• Centralized Management
• Cloud Access
• Zero-Touch Provisioning
Management Features
• Web-based GUI
• Command Line Interface (CLI) through the console port, telnet
• SNMP v1/v2c/v3
- Trap/Inform
- RMON (1,2,3,9 groups)
• SDM Template
• DHCP/BOOTP Client
• 802.1ab LLDP/LLDP-MED
• DHCP AutoInstall
• Dual Image, Dual Configuration
• CPU Monitoring
• Cable Diagnostics
• EEE
• Password Recovery
• SNTP
• System Log
System Requirements
• Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
PACKAGE CONTENTS
• TL-SX3008F Switch
• Power Cord
• Quick Installation Guide
• Rackmount Kit
• Rubber Feet
DIMENSIONS

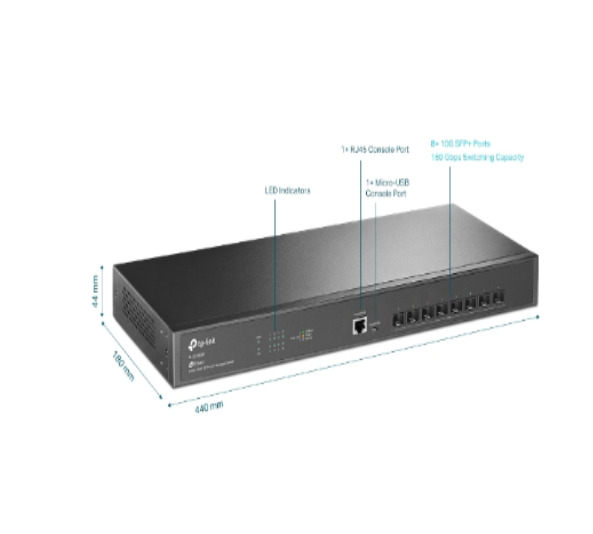

• L x W x H: 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)
