2.5 Gbps Speeds: 24× 2.5 Gbps RJ45 ports offer high-speed and reliable connections to other switches and devices.
-
10G Lightning-Fast Uplink: 4× 10 Gbps SFP+ slots enable high-bandwidth connectivity and non-blocking switching capacity.
-

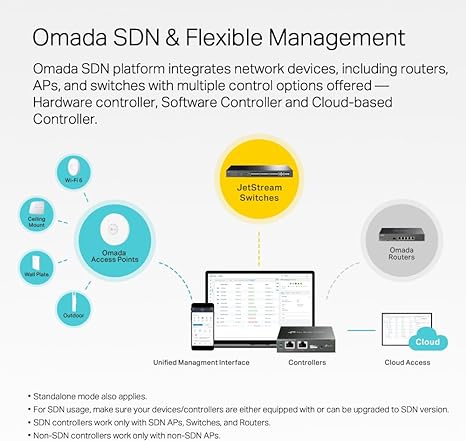

Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)*, Centralized Cloud Management, and Intelligent Monitoring.
-
Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
-
Static Routing: Helps route internal traffic for more efficient use of network resources.
-
Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
-

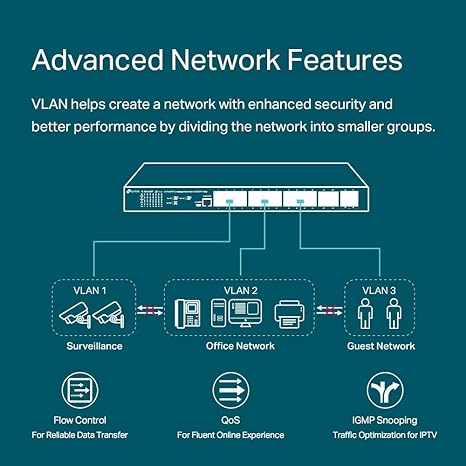

Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
-
Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities
SPECIFICATIONS

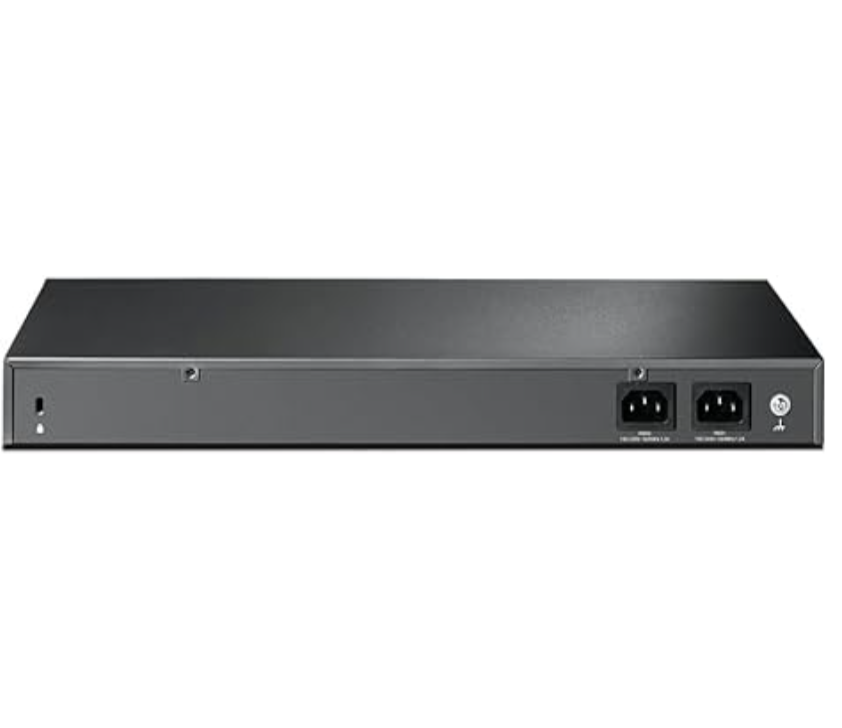

• Power Supply: 100-240 V AC~50/60 Hz
• Mounting: Rack Mountable
• Max Power Consumption: 45.1 W (110V/60Hz)
• Max Heat Dissipation: 154.38 BTU/h (110 V/60 Hz)
Performance
• Switching Capacity: 200 Gbps
• Packet Forwarding Rate: 148.80 Mpps
• MAC Address Table: 32 K
• Packet Buffer Memory: 16 Mbit
• Jumbo Frame: 9 KB

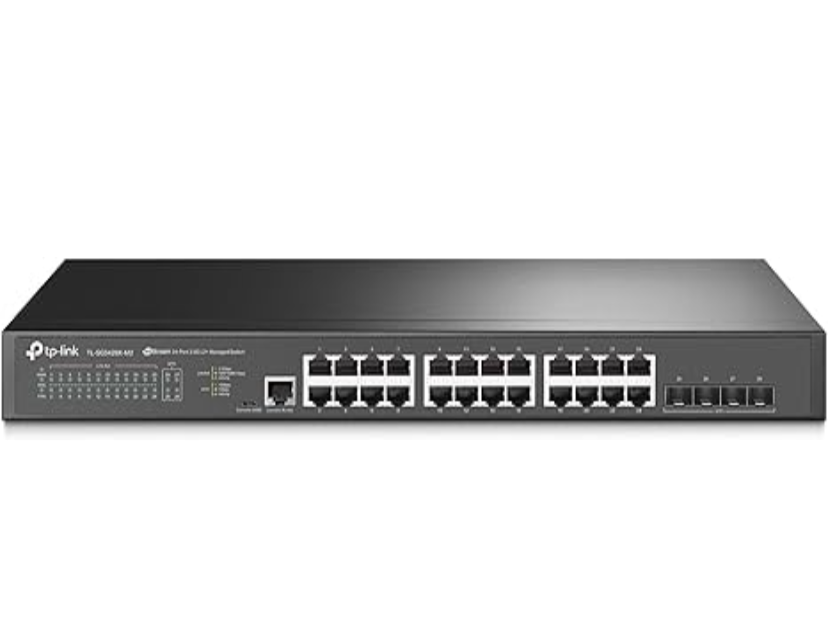

Interface
• 24× 2.5 Gbps RJ45 Ports
• 4× 10G SFP+ Slots
• 1× RJ45 Console Port
• 1× Micro-USB Console Port
Advanced Features
• Automatic Device Discovery
• Batch Configuration
• Batch Firmware Upgrading
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule
Management Features
• Web-based GUI
• Command Line Interface (CLI) through the console port, telnet
• SNMP v1/v2c/v3
- Trap/Inform
- RMON (1,2,3,9 groups)
• SDM Template
• DHCP/BOOTP Client
• 802.1ab LLDP/LLDP-MED
• DHCP AutoInstall
• Dual Image, Dual Configuration
• CPU Monitoring
• Cable Diagnostics
• EEE
• Password Recovery
• SNTP
• System Log
Omada App
• Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management
• Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
Cloud Access
• Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning
• Yes. Requiring the use of Omada Cloud-Based Controller.
System Requirements
• Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
PACKAGE CONTENTS
• TL-SG3428X-M2 Switch
• Power Cord
• Quick Installation Guide
• Rackmount Kit
• Rubber Feet
DIMENSIONS
• W x D x H: 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)
