Full Gigabit Ports: 24× gigabit RJ45 ports and 4× gigabit SFP Slots provide high-speed connections.
-

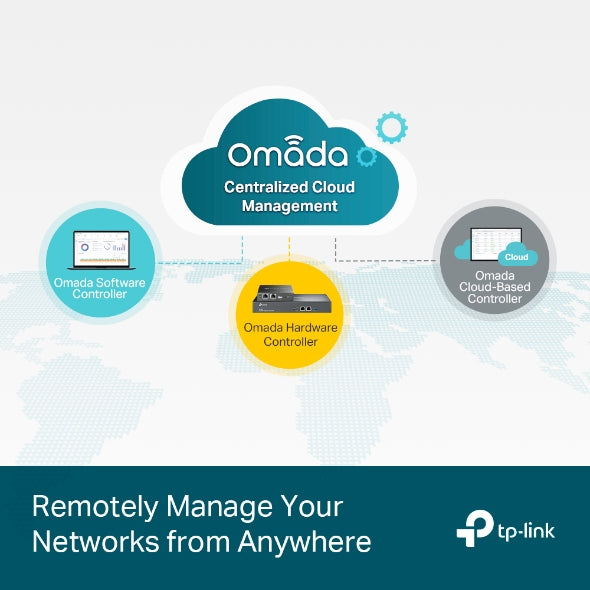

Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)*, Centralized Cloud Management, and Intelligent Monitoring.
-
Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
-
Static Routing: Helps route internal traffic for more efficient use of network resources.
-
Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
-
Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
-
Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities
SPECIFICATIONS
• Fan Quantity: Fanless
• Power Supply: 100-240 V AC~50/60 Hz
• Mounting: Rack Mountable
Interface

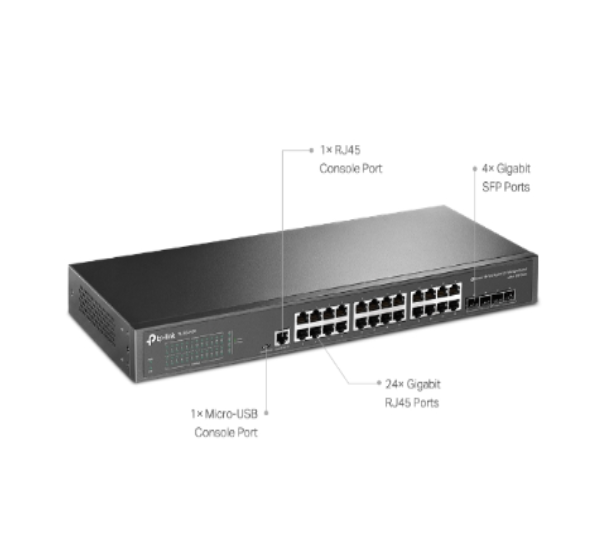

• 24× 10/100/1000 Mbps RJ45 Ports
• 4× Gigabit SFP Slots
• 1× RJ45 Console Port
• 1× Micro-USB Console Port
Max Power Consumption
• V1: 19.22 W (110 V/60 Hz)
• V2: 19.9 W (220 V/50 Hz)
Max Heat Dissipation
• V1: 65.58 BTU/hr (110 V/60 Hz)
• V2: 67.73 BTU/h (220 V/50 Hz)
Performance
• Switching Capacity: 56 Gbps
• Packet Forwarding Rate: 41.66 Mpps
• MAC Address Table
- V1: 8K
- V2 and above: 16K
• Packet Buffer Memory: 12 Mbit
• Jumbo Frame: 9 KB
Advanced Features
• Automatic Device Discovery
• Batch Configuration
• Batch Firmware Upgrading
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule
MIBs
• MIB II (RFC1213)
• Bridge MIB (RFC1493)
• P/Q-Bridge MIB (RFC2674)
• Radius Accounting Client MIB (RFC2620)
• Radius Authentication Client MIB (RFC2618)
• Remote Ping, Traceroute MIB (RFC2925)
• Support TP-Link private MIBs
• RMON MIB(RFC1757, rmon 1,2,3,9)
Omada App
• Yes, through
• Omada Cloud-Based Controller (Not Supported by TL-SG2210P v4)
• OC300
• OC200
• Omada Software Controller
System Requirements
• Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
PACKAGE CONTENTS
• TL-SG3428 Switch
• Power Cord
• Quick Installation Guide
• Rackmount Kit
• Rubber Feet
DIMENSIONS
• L x W x H: 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)
