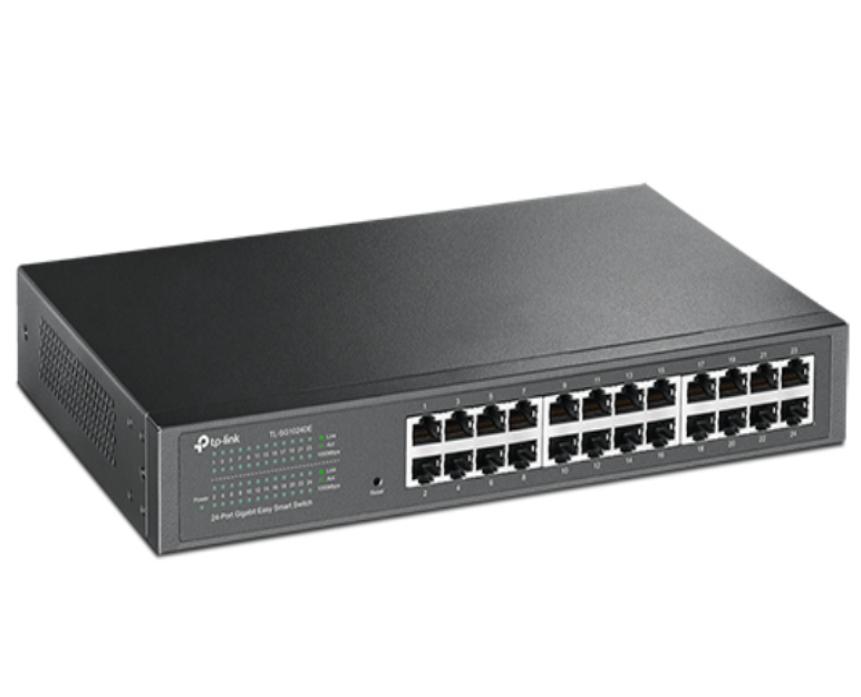

24 10/100/1000Mbps RJ45 ports
-
Provides network monitoring, traffic prioritization and VLAN features
-
Innovative energy-efficient technology reduces power output by up to 18%
-
Simple network set-up on top of plug-and-play connectivity
-
Web-based user interface and management utility simplify configuration
SPECIFICATIONS
• Fan Quantity: Fanless
• Physical Security Lock: No

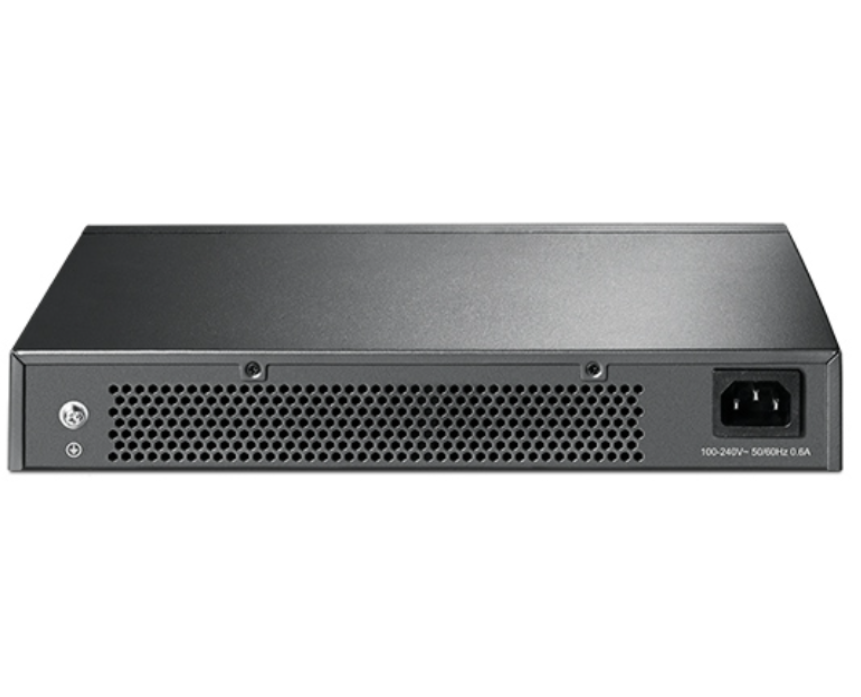

• Power Supply: 100-240VAC, 50/60Hz
• Mounting: Rack Mountable
• Max Power Consumption: 14.19W (220V/50Hz)
• Max Heat Dissipation: 48.39 BTU/h
• Transmission Method: Store-And-Forward
Standards and Protocols
• IEEE 802.3i
• IEEE 802.3u
• IEEE 802.3ab
• IEEE 802.3x
• IEEE 802.1q
• IEEE 802.1p
Interface
• 24 10/100/1000Mbps RJ45 Ports
• AUTO Negotiation/AUTO MDI/MDIX
Network Media
• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
Performance
• Switching Capacity: 48Gbps
• Packet Forwarding Rate: 35.7Mpps
• MAC Address Table: 8K
• Packet Buffer Memory: 4.1Mbit
• Jumbo Frame: 10KB
Quality of Service
• Support Port-based/802.1p/DSCP priority
• Support 4 priority queues
• Rate Limit
• Storm Control
L2 Features
• IGMP Snooping V1/V2/V3
• Static Link Aggregation
• Port Mirroring
• Cable Diagnostics
• Loop Prevention
VLAN
• Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
• MTU/Port/Tag VLAN
System Requirements
• Microsoft® Windows® for Easy Smart Utility
PACKAGE CONTENTS
• TL-SG1024DE
• Power Cord
• Installation Guide
• Resource CD
• Rackmount Kit
• Rubber Feet
DIMENSIONS
• L x W x H: 11.6 x 7.1 x 1.7 in. (294 x 180 x 44 mm
