Description

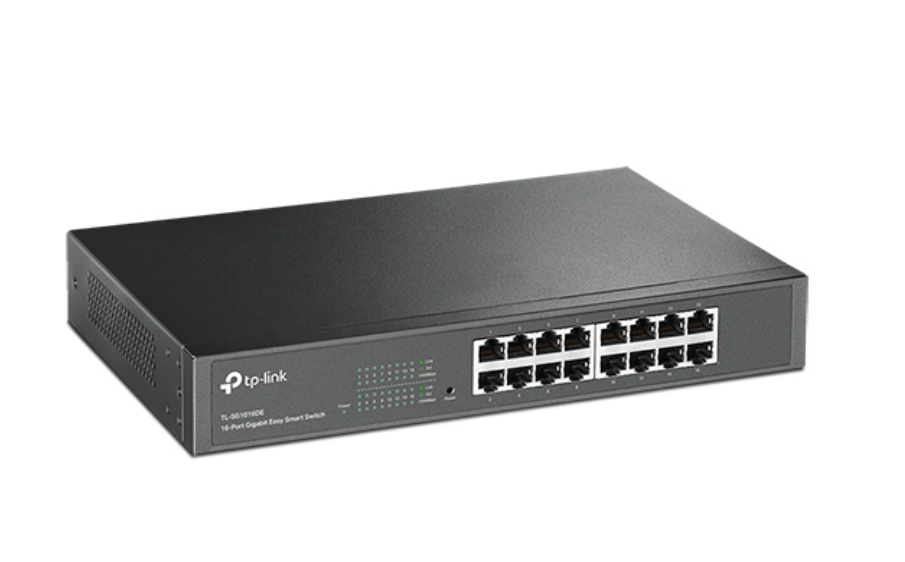

● 16 10/100/1000Mbps RJ45 ports
● Provides network monitoring, traffic prioritization and VLAN features
● Innovative energy-efficient technology reduces power output by up to 18%
● Simple network set-up on top of plug-and-play connectivity
● Web-based user interface and management utility simplify configuration
SPECIFICATIONS
HARDWARE FEATURES
• Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
• Interface
• 16 10/100/1000Mbps RJ45 Ports
• AUTO Negotiation/AUTO MDI/MDIX
• Network Media
• 10BASE-T
• UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX
• UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 1000BASE-T
• UTP category 5, 5e, 6 or above cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• Fan Quantity: Fanless

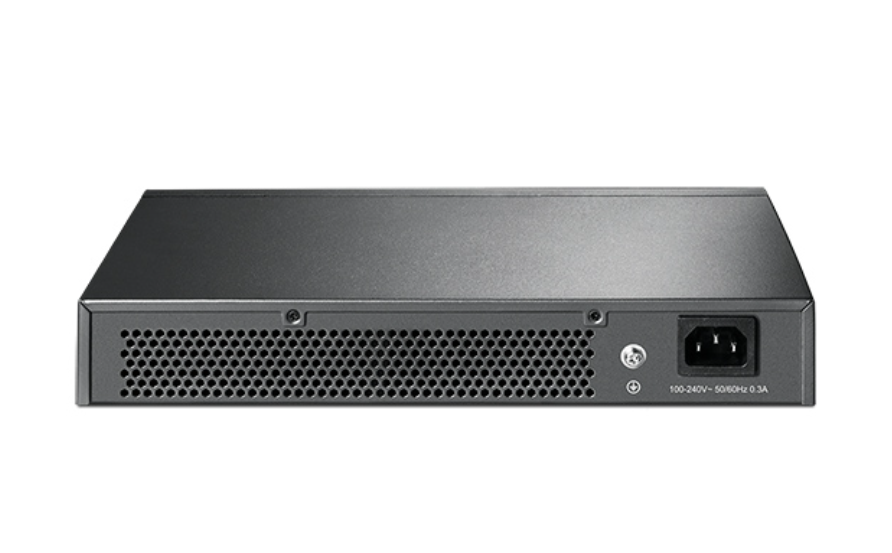

• Power Supply: 100-240VAC, 50/60Hz
• Dimensions ( W x D x H ): 11.6*7.1*1.7 in. (294*180*44 mm)
• Mounting: Rack Mountable
• Max Power Consumption: 19.15W (220V/50Hz)
• Max Heat Dissipation: 65.34 BTU/h
PERFORMANCE
• Switching Capacity: 32Gbps
• Packet Forwarding Rate: 23.8Mpps
• MAC Address Table: 8K
• Packet Buffer Memory: 512KB
• Jumbo Frame: 9KB
SOFTWARE FEATURES
• Quality of Service
• Support Port-based/802.1p/DSCP priority
• Support 4 priority queues
• Rate Limit
• Storm Control
• L2 Features
• IGMP Snooping V1/V2/V3
• Static Link Aggregation
• Port Mirroring
• Cable Diagnostics
• Loop Prevention
• VLAN
• Supports up to 128 VLANs simultaneously (out of 4K VLAN IDs)
• MTU/Port/Tag VLAN
• Transmission Method: Store-And-Forward
OTHERS
• Certification:FCC, CE, RoHS
• Package Contents: TL-SG1016DE
• Power Cord
• Installation Guide
• Resource CD
• Rackmount Kit
• Rubber Feet
• System Requirements: Microsoft® Windows® for running Utility
Environment
• Operating Temperature: 0℃~40℃ (32℉~104℉)
• Storage Temperature: -40℃~70℃ (-40℉~158℉)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
