Description

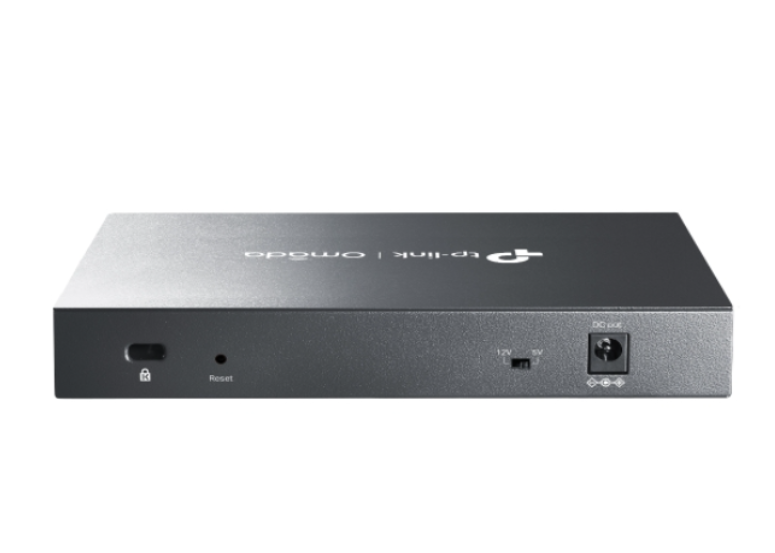

● 1 DC output port that supports both 5V and 12 V voltage switching
● Durable metal casing of superior quality and professional appearance
● Intelligent management via a web user interface and downloadable utility
● Green technology reduces power consumption
SPECIFICATIONS
• Standards and Protocols: CSMA/CD
Interface

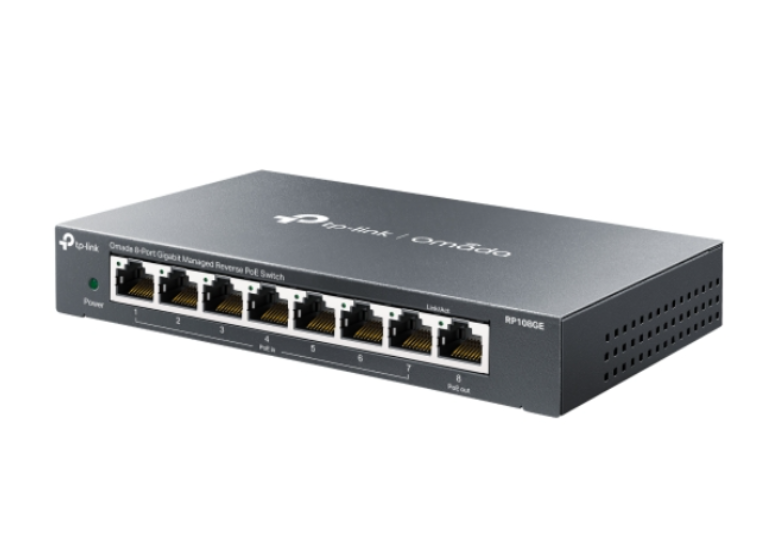

• 7 Passive PoE-in RJ45 Ports:
- 10/100/1000Mbps Auto-Negotiation
- Voltage: 24/48 V (mixture is not supported)
- Power pin of Ethernet cable: 4/5+ 7/8-
• 1 Passive PoE-out RJ45 Port:
- 10/100/1000Mbps Auto-Negotiation
- Voltage: depending on the input voltage of PoE-in ports
- Power pin of Ethernet cable: 4/5+ 7/8-
• 1 DC Output Port
- Voltage: 5/12 V
Network Media
• 10Base-T:
- UTP category 3, 4, 5 cable (maximum 100 m)
- EIA/TIA-568 100 Ω STP (maximum 100 m)
• 100Base-TX:
- UTP category 5, 5e cable (maximum 100 m)
- EIA/TIA-568 100 Ω STP (maximum 100 m)
• 1000Base-T:
- UTP category 5e cable (maximum 100 m)
- EIA/TIA-568 100 Ω STP (maximum 100 m)
Hardware Features
• Packet Forwarding Rate: 11.9 Mbps
• Mac Address Table: 4 K
• Jumbo Frame: 16 KB
• Switching Capacity: 16 Gbps
• LED Indicator: Power, Link/Act LED
IEEE Standards
• IEEE802.3ab, IEEE802.3i, IEEE802.3p
• IEEE802.3q, IEEE802.3x, IEEE802.3u
Data Rates
• Ethernet: 10 Mbps (Half Duplex), 20 Mbps (Full Duplex)
• Fast Ethernet: 100 Mbps (Half Duplex), 200 Mbps (Full Duplex)
• Gigabit Ethernet: 2000 Mbps (Full Duplex)
Max Power Consumption
• 3.98 W (with no PD connected)
• 18.01 W (24 V with PD connected)
• 32.74 W (48 V with PD connected)
Max Heat Dissipation
• 13.57 BTU/h (with no PD connected)
• 61.41 BTU/h (24 V with PD connected)
• 111.64 BTU/h (48 V with PD connected)
Quality of Service
• Support Port-based/802.1p/DSCP priority
• Support 4 priority queues
• Rate Limit
• Storm Control
L2 Features
• IGMP Snooping V1/V2/V3
• Static Link Aggregation
• Port Mirroring
• Cable Diagnostics
• Loop Prevention
VLAN
• Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
• MTU/Port/Tag VLAN
Transmission Method
• Store-And-Forward
System Requirements
• Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux.
PACKAGE CONTENTS
• TL-RP108GE
• Power Cord
• Installation Guide
• Rubber Feet
DIMENSIONS
• L x W x H: 6.2 × 3.9 × 1.0 in (158 × 99.1 × 25 mm)
