General Information
Product Series
P34A80
Product Type
Solid State Drive
Technical Information
Flash Memory Technology
Triple-Level Cell
Storage Capacity
256GB
Drive Type
Internal
Drive Width
M.2 2280
Interfaces/Ports
Interface Standard
PCI Express NVMe 3.0 x4
Drive Interface
PCI Express NVMe
Physical Characteristics
Form Factor
M.2 2280
Miscellaneous
Assembly Required
No
Eco Friendly
Yes

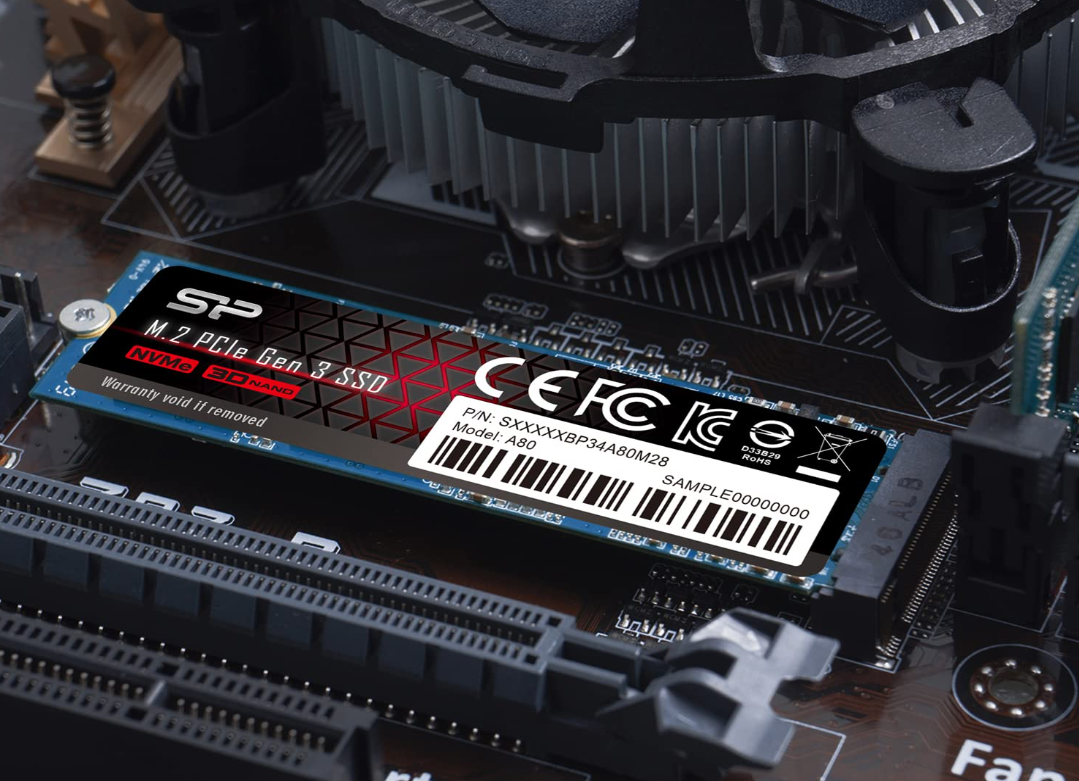

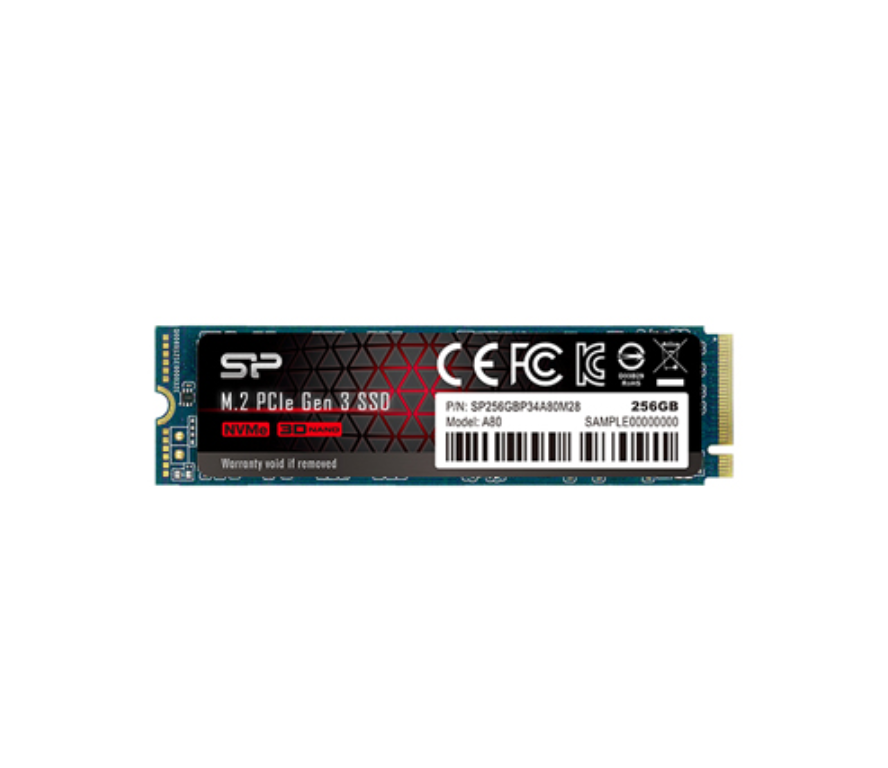

Silicon Power SP256GBP34A80M28 P34A80 256GB PCI Express 3.0 NVMe x4 M.2 2280 Solid State Drive
The youngest model from the family of high-performance M.2 (PCI-E 4x) SSDs in the M.2 2280 form factor. Designed to equip mid-range, high-end and premium personal computers, laptops and workstations. It features impressive I/O performance (390,000/450,000 IOPS), high read/write speed (3400/3000 Mbps), and fast random block access time. Positioned as a product of the middle price category of the 2019 model year.
The Silicon Power P34A80 M.2 SP256GBP34A80M28 SSD is based on the advanced Phison PS5012-E12-27 eight-channel controller, working with a 256MB DDR4 DRAM buffer. High-quality 64-layer 3D TLC BiCS3 NAND flash memory manufactured by Toshiba was used for data storage. For the full operation of the device, a motherboard with an M.2 connector that supports the PCI-E 3.0 x4 (NVMe 1.3) interface is required.
The controller supports high-speed SLC write caching technology up to 8 GB, which guarantees excellent performance of the drive as a system drive and other typical home and professional use scenarios. Unlike HDD drives, this model has a high impact resistance. The manufacturer does not declare a guaranteed recording resource, but provides the device with a proprietary 5-year warranty.
