Cold-start capable
-
Provides temporary battery power when the utility power is out.
-
Boost Automatic Voltage Regulation (AVR)
-
Preserves battery life and maximizes runtime by correcting low voltages without discharging the battery.
-
Transformer-block spaced outlets
-
Protect equipment with input transformer blocks without blocking access to other receptacles.
-
Sleek design
-
Slim, modern design can be upright, flat, or wall-mounted to comfortably fit any electronics set-up and complement home décor.

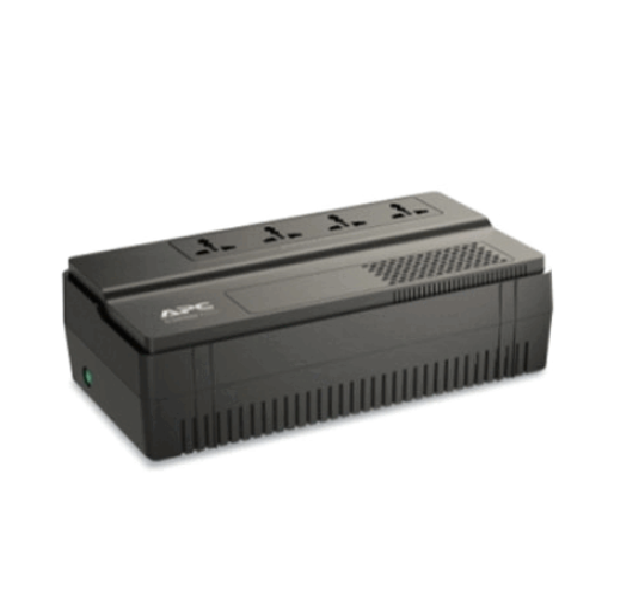

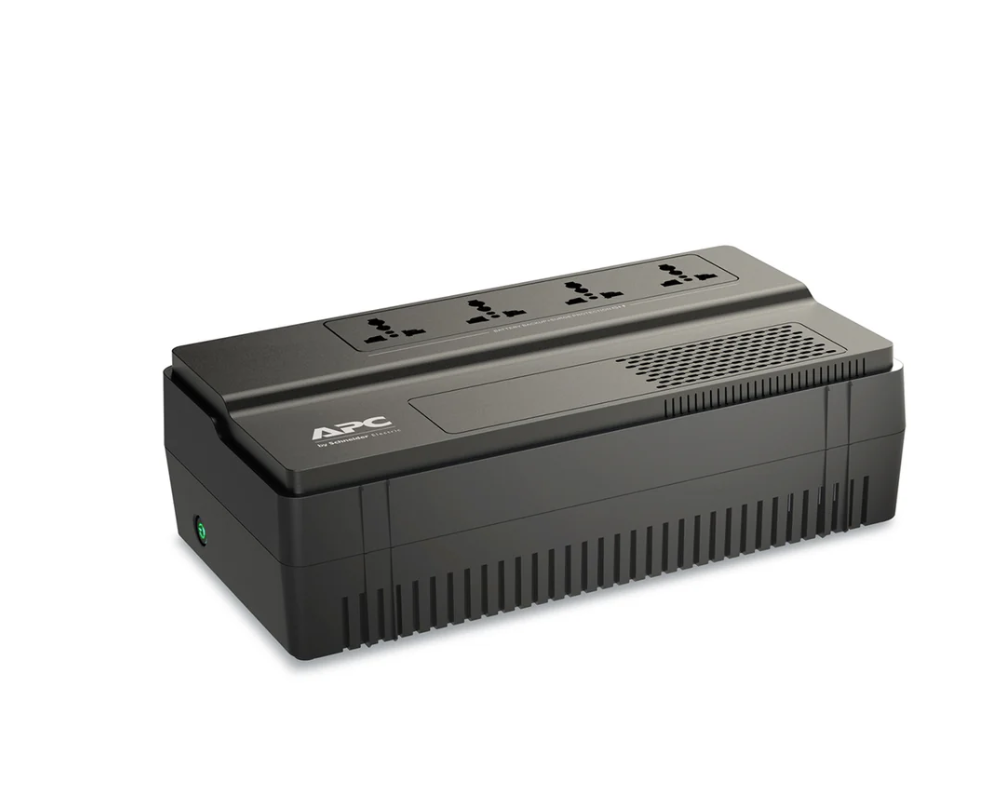

This APC Easy UPS provides power protection for unstable power conditions in homes and small offices, ensuring consistent and reliable connectivity at the most critical moments. The 800VA floor/wall mount UPS has 4 total outlets, all of which provide battery back up and surge protection. It has a surge energy rating of 156 Joules. It features Automatic Voltage Regulation to correct voltage dips and surges to proper levels.
SPECIFICATIONS
OUTPUT |
|
|
MAX CONFIGURABLE POWER (Watts) |
450 Watts / 800VA |
|
OUTPUT FREQUENCY (Sync to mains) |
50/60 Hz +/- 1 Hz Sync to mains |
|
TOPOLOGY |
Line interactive |
|
WAVEFORM TYPE |
Stepped approximation to a sinewave |
|
TRANSFER TIME |
6 ms typical : 10 ms maximum |
INPUT |
|
|
INPUT FREQUENCY |
50/60 Hz +/- 5 Hz Auto-sensing |
|
INPUT VOLTAGE RANGE FOR MAIN OPERATIONS |
170 - 280V |
|
NUMBER OF POWER CORDS |
1 |
BATTERIES & RUNTIME |
|
|
BATTERY TYPE |
Lead-acid battery |
|
TYPICAL RECHARGE TIME |
8 hour(s) |
|
NOMINAL BATTERY VOLTAGE |
12 V |
|
EXPECTED BATTERY LIFE |
3 - 5 |
COMMUNICATIONS & MANAGEMENT |
|
|
CONTROL PANEL |
LED Status display with on line : on battery |
|
AUDIBLE ALARM |
Alarm when on battery : distinctive low battery alarm |
SURGE PROTECTION AND FILTERING |
|
|
SURGE ENERGY RATING |
156Joules |
PHYSICAL |
|
|
MAXIMUM HEIGHT |
93MM, 9.25CM |
|
MAXIMUM WIDTH |
161MM, 16.05CM |
|
MAXIMUM DEPTH |
305MM, 30.5CM |
|
NET WEIGHT |
5.3KG |
|
COLOR |
Black |
ENVIRONMENTAL |
|
|
OPERATING TEMPERATURE |
0 - 40 °C |
|
OPERATING RELATIVE HUMIDITY |
0 - 90 % |
|
OPERATING ELEVATION |
0 - 2032.1meters |
|
STORAGE TEMPERATURE |
-20 - 50 °C |
|
STORAGE RELATIVE HUMIDITY |
0 - 90 % |
|
STORAGE ELEVATION |
0 - 15240 meters |
|
AUDIBLE NOISE AT 1 METER FROM SURFACE OF UNIT |
40.0dBA |
|
PROTECTION CLASS |
IP20 |
